PRODUCTS

Tumbler Screen - KTS


Stainless or Carbon Steel
50 t/h Capacity
Feed Size up to 20 mm
3-Dimensional Motion and Separation up to 7 Fractions
Dust Proof and CE Standard
ATEX Certified and FDA Compliant On Demand

Control Screen - KTS-VS2


Stainless or Carbon Steel
200 t/h Capacity
Feed Size up to 20 mm
Dust Proof and CE Standard
ATEX Certified and FDA Compliant On Demand

Control Screen - KTS-V2


Stainless or Carbon Steel
200 t/h Capacity
Feed Size up to 20 mm
Dust Proof and CE Standard
ATEX Certified and FDA Compliant On Demand

Control Screen - KTS-VS


Stainless or Carbon Steel
5 t/h Capacity
Feed Size up to 20 mm
Dust Proof and CE Standard
ATEX Certified and FDA Compliant On Demand

Control Screen - KTS-V


Stainless or Carbon Steel
10 t/h Capacity
Feed Grain Size up to 20 mm
Dust Proof and CE Standard
ATEX Certified and FDA Compliant On Demand

Laboratory Screen - KLS


Suitable for All Standard 200 mm Laboratory Sieves
Plexiglass Coating (Airtight)
100 gr Capacity
Feed Size up to 3 mm

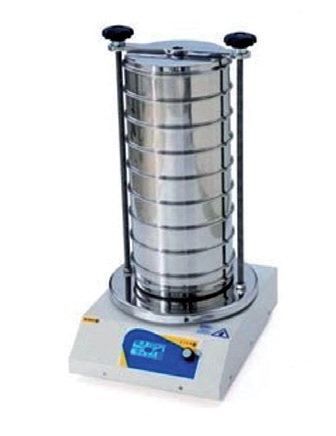

Laboratory Screen - KTL


3 Different Models with 200, 300 and 400 mm Diameter
Feed Size up to 10 mm
3-Dimensional Motion
Simultaneous 8-16 Stage Screening

Pendulum Mill - PM


Combined grinding, de-agglomeration, drying and classification

Particle size top cut: 10 μm to 1,000 μm
Capacity: 0.1 t/h - 150 t/h
Mill power: 10 kW - 600 kW
Air Flow: 3,000 m³/h - 210,000 m³/h
Feed product size: 0 - 50 mm
Feed product moisture: 0 - 35%
Grinding ring dia.: 500 mm - 2,700 mm
Number of grinding rolls: 1 - 5

Pendulum Mill - PMX


Applications: Soft to Medium Hard Materials (Limestone, Talc, Graphite, Pigments, Chemical Products, etc.)

Impact Crusher Mill - ICM


Applications: Powder Coatings, Chemicals, Food & Sweets, Cosmetics, Pigments, Minerals

Air flow: 144 - 36000 m³/h
Dust load: 50 - 600 g/m³
Capacity: 10 - 21600 kg/h
Grinding speed: 60 - 130 m/s
Fineness: d97 10 - 400 μm
Hardness of material: 1 - 3 Mohs

Impact Crusher Mill - ICX


Applications: Chemicals, Food & Sweets, Lime Cycle Carbonates (GCC, PCC), Performance Minerals (Graphite, Talcum, Activated Carbon), Pigments & Paint (Iron Oxide, Titanium Dioxide, Carbon, Black)

Combined extra-fine dry grinding and classification of brittle materials
Particle size top cut: 5 μm to 50 μm
Capacity: 10 kg/h - 20,000 kg/h
Mill power: 2 kW - 600 kW
Air Flow: 100 m³/h - 40,000 m³/h
Feed product size: 0 - 10 mm
Grinding chamber dia.: 150 mm - 2,000 mm

Air Jet Mill - MJS


Completely automatic operation
Reduced wear on parts
No product contamination
Simple controls
Easy to dismantle for cleaning and sterilization
Highly efficient milling
Extremely low noise levels
Compact construction
Ideal for extra fine, hard and abrasive substances

Ball Mill - Microton


Applications: Synterized Alumina, Calcined Alumina, Hydrate Alumina, Clay, Bentonite, Caolin, Calcium Carbonate, Dolomite, Engobe, Felspar, Frit, Sanitary Ware Scraps, Magnesite, Olivine, Quartz, Zirconium Silicate, Talc, Zeolite

Cryogenic Pin Mill - MP


Adjustable operation parameters (disc rotating speed or direction), enables the possibility to adjust the grinding process according to different material and fineness.

Interchangeable grinding disc, available of different design and material, with various grinding tools and surface treatment to satisfy specific requirements
Easy product dimension regulation
Easy access for maintenance

Table Roller Mill - TRM


Compact design
Minimum space required
Easy set-up
Minimum maintenance
Low energy consumption
Withstands high stress

Impact Mill - JCF


Optimal energy efficiency
Low noise emission
Minimal maintenance
Compact machine, minimum space required
Excellent quality and reliability
Easy cleaning and maintenance
Reliability

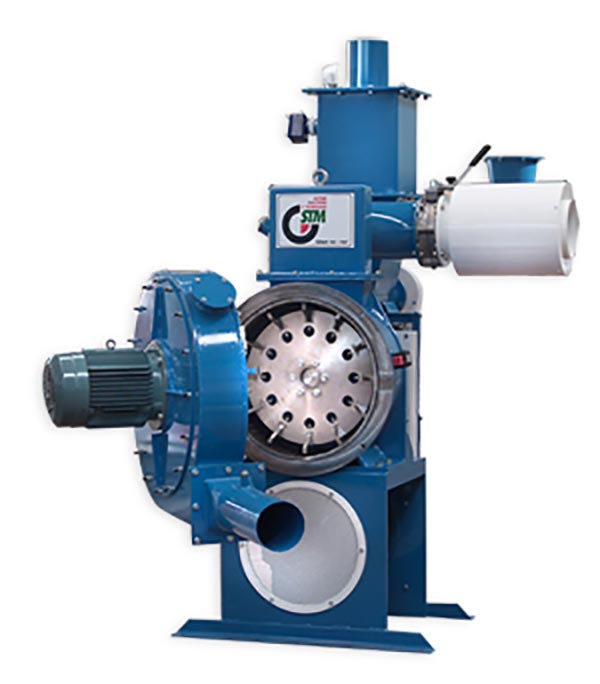

Impact Mill - Compact


Compact design
Limited space requirement
Easy installation
Minimum maintenance
Reduced energy consumption due to the electronic operation control
Fully automatic operation process

Laboratory Type Mill - Galileo Line


Ease of operation: with automatic recognition of devices installed
Ease of use: the client is guided to introduce the required analytic objective and desired granulation, while the machine’s electro-mechanical parameters are regulated automatically
Ease of maintenance: interface with the control panel guides the tasks, methods and timing of maintenance
Ease of cleaning: every component of the machine is designed to be easy to clean, with polished internal surfaces and no rough or inaccessible areas
Low investment costs

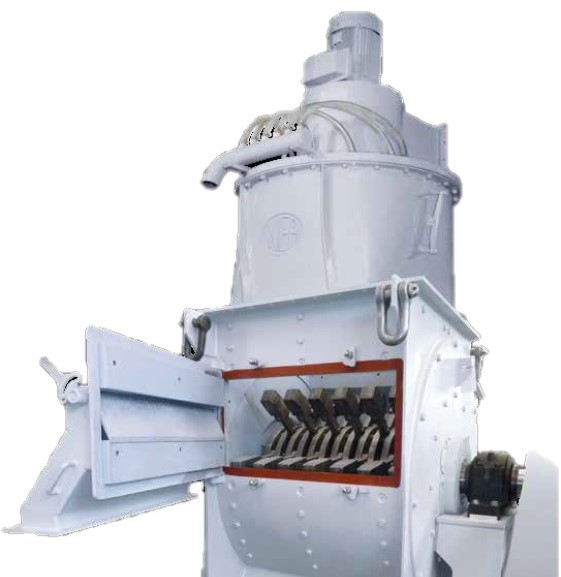

Hammer Mill - HM


Applications: Minerals, Hydrated Lime, Bentonite, Bleach Earth

Sharp top cuts
Narrow particle size distribution
Grinding materials up to Mohs 3
Heavy duty design
Wear protected
Special discharge for abrasive contaminations
Energy saving
Low maintenance

Crusher Mill - MF


Easy to use and install
Ideal for depuration systems prone to limescale
Minimum maintenance
Low energy consumption
Withstands high stress

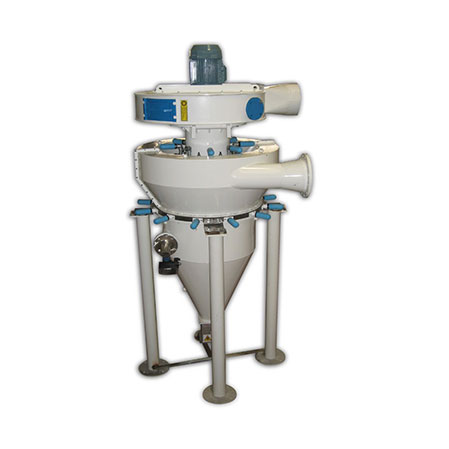

SDF Separator


High selection capability, giving a yield of up to 70% fine particles
Compact design with limited weight and little space needed
Ease of installation
Easy cleaning and maintenance
Simple controls
Low noise levels, no vibration
Minimal operational wear, so low product contamination with metallic particles
Low energy consumption

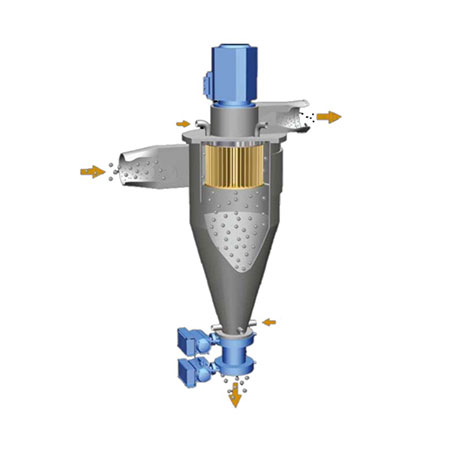

Cyclone Separator - CS


Air flow:180 - 57,600 m³/hr
Dust load: 50 - 600 g/m³
Capacity: 10 - 34,600 kg/h
Cut sizes: d97 5 - 250 μm
Motor power: 0,55 - 160 kW

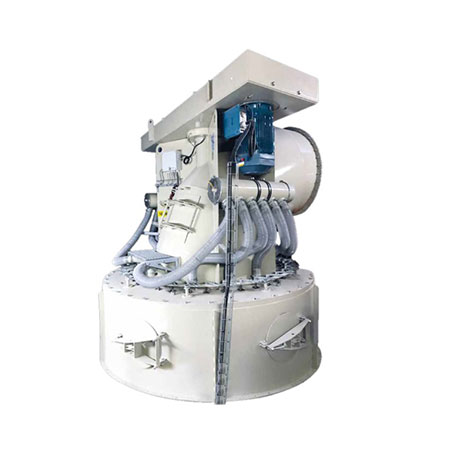

Deflector Separator - DC


Full process air inline classifying

Fine fraction particle size top cut: 50 μm - 200 μm
Capacity: 5 t/h - 100 t/h
Motor power: 75 kW - 100 kW
Air flow: 25,000 m³/h - 150,000 m³/h
Diameter: up to 3,000 mm

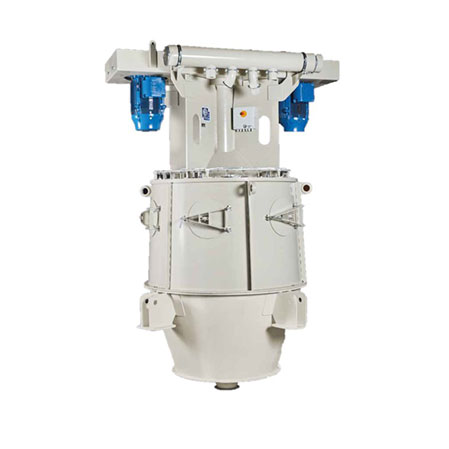

Deflector Separator - DCX


Full process extra-fine inline air classifying

Fine fraction particle size top cut: 8 μm - 50 μm
Capacity: 500 kg/h - 50,000 kg/h
Motor power: 15 kW - 300 kW
Air flow: 3,000 m³/h - 60,000 m³/h
Diameter: up to 3,000 mm

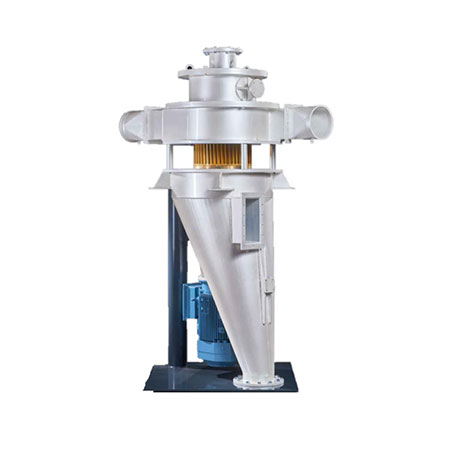

GRC Separator


Applications: Fertilizers, Oilfield Minerals, Pigments & Paint, Clay & Ceramics, Gypsum, Lime Cycle Carbonates, Performance Minerals

Maximum yield classifier with integrated pre-dispersion unit

Fine fraction particle size top cut: 2 μm - 200 μm
Capacity: 50 kg/h - 50,000 kg/h
Motor power: 10 kW - 300 kW
Air flow: 1,000 m³/h - 40,000 m³/h
Feed particle size: max. 3 mm - 5 mm
Diameter: up to 2,000 mm

Transporter


Heavy-duty design
60° cone
Smooth interior
Butterfly valve with pneumatic actuator
Rotable outlet
Erosion allowences on wear surface
Design pressure: 6 bar
Temperature range: -10 °C +50 °C
PED 97/23/CE

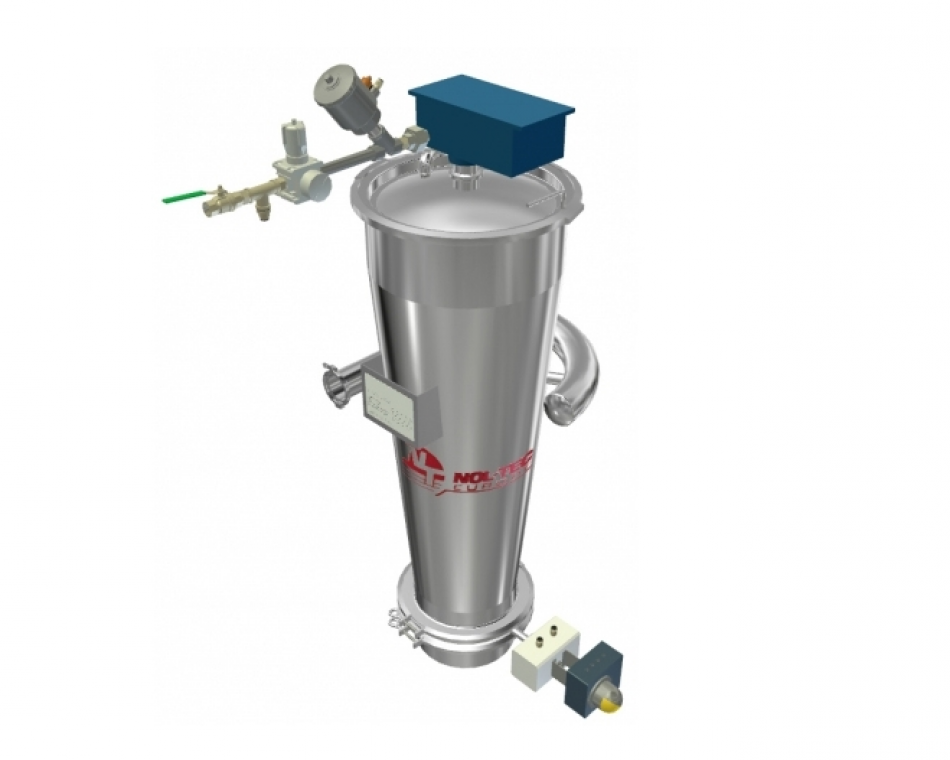

Vacuum Conveyor


Structure in AISI 316 L
Automatic cleaning of the filter
Discharge of large diameter
Manual dismantling with no tools
Reduced maintenance
Pneumatic activation and feeding

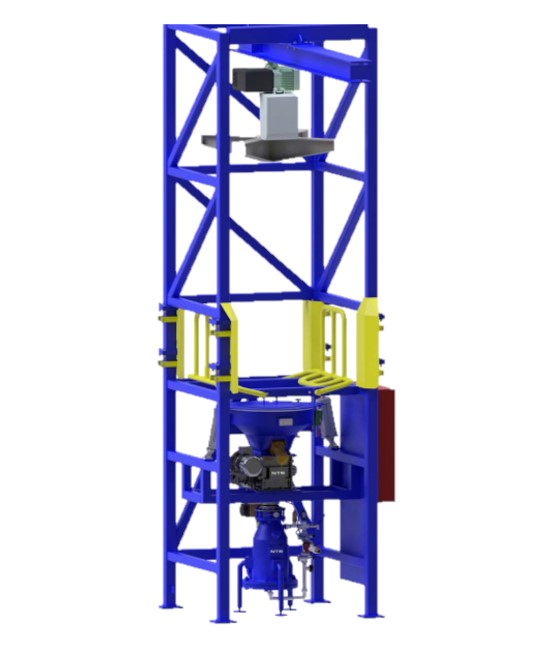

Smartjet


Applications: Atomized clay, Powders from filters, Calcium Carbonate, Corn Starch, Flours, Quartz, Sand, Kaolin, Feldspar, Silica, Zeolite, Cerium Oxide, Magnesium, Gluten Corn, Fertilizer, Talc, Bentonite, Sodium Bicarbonate, Dolomite, Detergent, Alumine, Calcium Sulphate, Vitamins, Superfine Flour, Melanine, Pigments

Pressure dense phase conveying
Capacity up to 5 m³/h
Distances up to 150 m

Air Assist®


Advantages:

Low convey speed (< 3 m⁄sec)
Reduction of abrasion of piping components
Reduction of product degradation of the conveyed product
Convey restart with pipeline full of product (non – purging concept)

Blender Transporter


Heavy-duty design
60° cone
Smooth interior
Butterfly valve with pneumatic actuator
Rotable outlet
Erosion allowences on wear surface
Aeration jets
Design pressure: 6 bar
Temperature range: -10 °C +50 °C
PED 97/23/CE

Diverter - Model 403


Atoxic and Natural Rubber
Temperature: -5 °C to 80 °C
Pressure Indicator
Converging/Diverging with appropriate wear resistant lining
Special design to minimize valves wear

Diverter - Model 405


Heavy-duty, carbon steel construction
Abrasion resistant rubber hose
Conveying pressure to 5 bar
Pressure or vacuum capabilities
Suitable for converging or diverging applications
Urethane sealing rings
Switches to indicate position

Diverter - Model 509


Flange Connection: Round
Max Working Pressure: +/- 0,02 bar
Housing Material: Stainless Steel AISI 304 / AISI 316, Painted Mild Steel
Seal Material: White Teflon

Circle Feeder


Watertight & airtight construction
Heat-resistant & wear-resistant
Explosion-proof
Revolution speed control

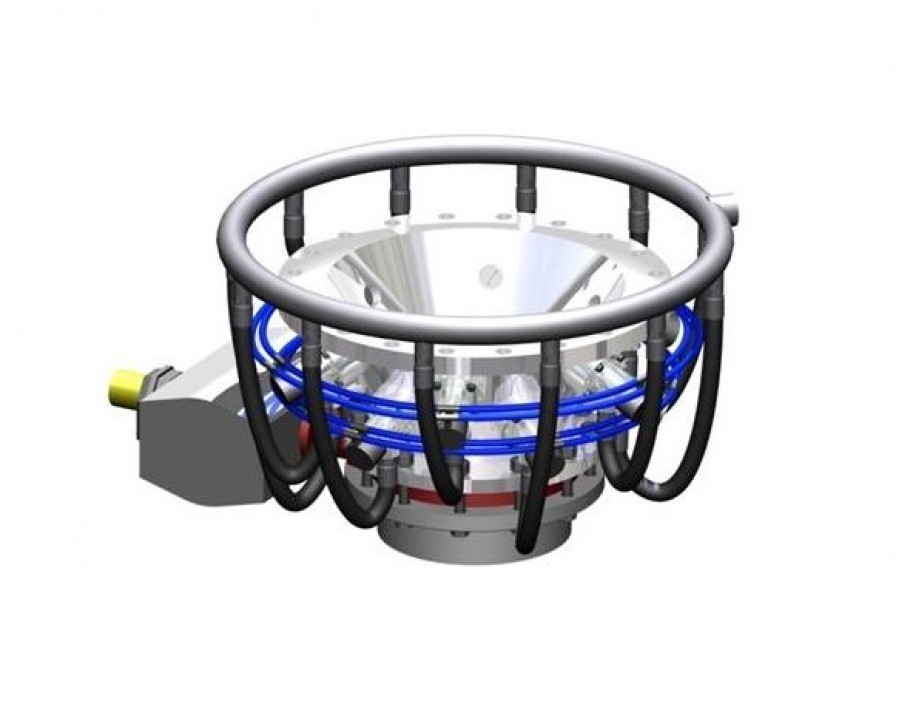

Fluidizing Bin Bottom - FBB


Three air injection valve assemblies controlled by a single solenoid valve for concurrent valves actuation
Ceramic valve seat directs air into the material at varius angles
Abrasion resistant, urethane valve seal
Wear parts are replaceable without removal of fluidizing cone
Controllable pressure and volume of air
Quick, clean and efficient blending
Simplified and low maintenance

Weighing Dosing System

Bag Unloading Station


Compact design
Stainless steel construction AISI 304 or 316
ATEX design 94/9/CE, zone 20/21 and 20/22
Easy filter access
Cartridges cleaning with compressed air
100% material recovery

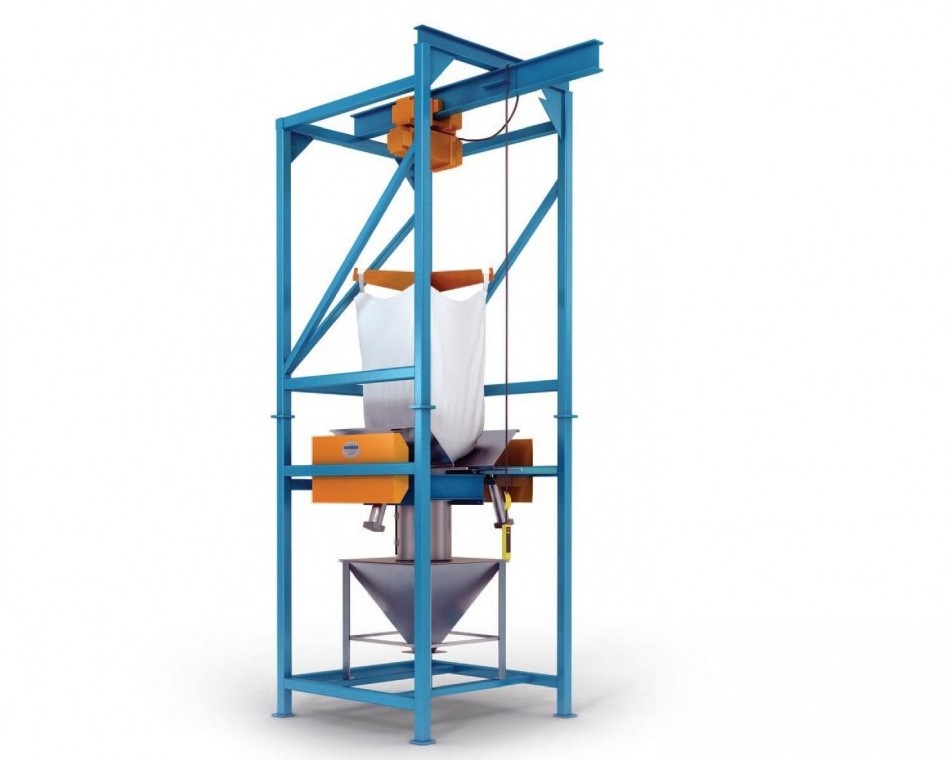

Big-Bag Unloading Station


Heavy-duty mild steel construction
Modular design
Big Bag 1000x1000 mm
- heigth 1000 mm
- capacity 1000 Kg
Bag lift spreader

Spray Dryer


Applications: Foods, Pharmaceuticals, Biochemicals, Inorganic Materials, New Developed Materials

High controllability
Easy to wash
Hygienic design
Energy saver
Various options

Ribocone Mixer


Applications: Magnetic Minerals, Herbal Medicines, Seasonings, Animal Feed, Powder Mixes, Resin Powders, Pharmaceuticals, Ceramics, Starches, PET, Polyester, Spices

Mixing & Drying
Liquid Concentration, Evaporation Plus Drying
Heat Treatment
Dosage of Active Ingredients
Extraction
Removal

Evaporator


Applications: Pharmaceuticals, Nutraceuticals, Cosmetics, Food & Beverages, Chemicals

Vacuum operation
Heat transfer by dropwise condensation
Enforced discharge of concentrate due to centrifugal force
Thin liquid film formed by centrifugal force
Exceptional heat transfer efficiency
Designed for easy operation

Air Blender


Applications: Soya powder, Potatoes starch, Rubber, Coffee, Calcium citrate, Alumina, Calcium carbonate, Soda, Caolin, Quartz, Cellulose, Cement, Lime, Sand, Fertilizing, Iron oxide, Aspartame, Titanium dioxide, Dolomite, Catalyst, Copper oxide, Egg powder, Dextrose, Fructose, Malt, Aspirin powder, Antibiotic, Wood saw dust, Wax, Ferrous sulphate, PVC, Polypropylene, Corn, Glass, Pigment, Zirconuim

Batching and pneumatic blending of bulk solids

Hydrocyclones


Finer, sharper particle separations at high capacities
Fewer cyclones needed for optimal performance
Easy maintenance
Longer wear life
Lower power draw
Sustained hydraulic efficiency

Cyclone Manifold


25 - 40% finer, sharper separation than standard cyclones
Fewer cyclones needed for optimal performance
Available in sizes ranging from 1” to 10” in diameter
Can achieve separation as fine as 10 microns
Numerous cyclones can be manifolded together in a tight space
Utilizes a 2-component molded urethane that provides maximum strength and wear characteristics

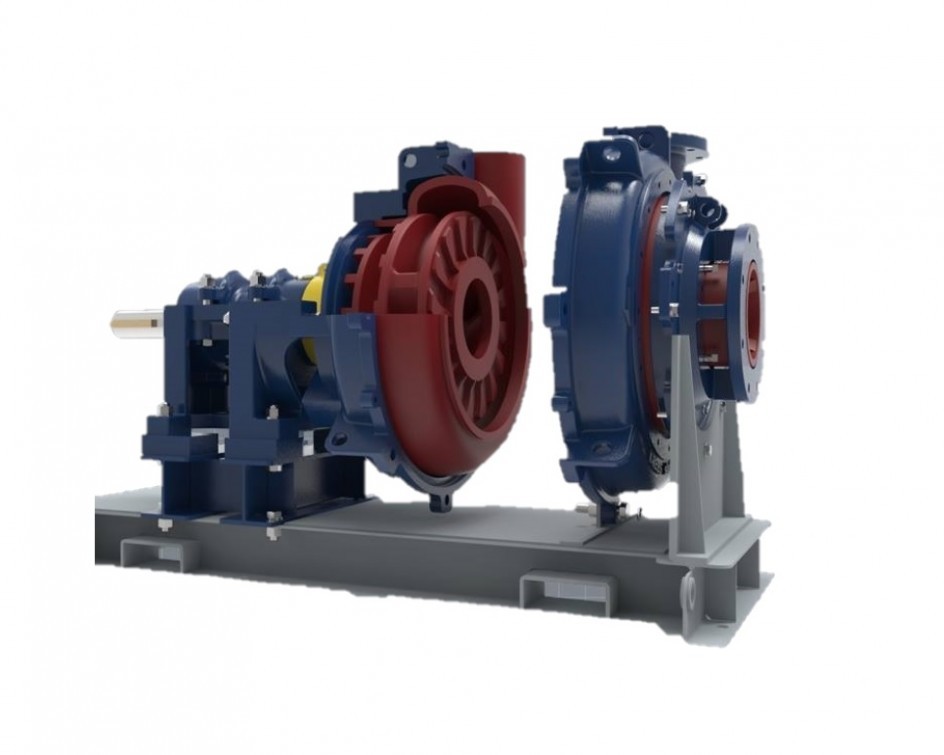

SlurryMax Pump


Applications: Mining and mineral processing, SAG mill discharge recirculation, Copper, Iron-ore, Gold, Oil Sands, Cyclone feed, Tailings, Mill discharge, Sand and gravel, Industrial processing, Heavy-duty abrasive slurries

Designed for heavy duty to the most extreme slurry applications

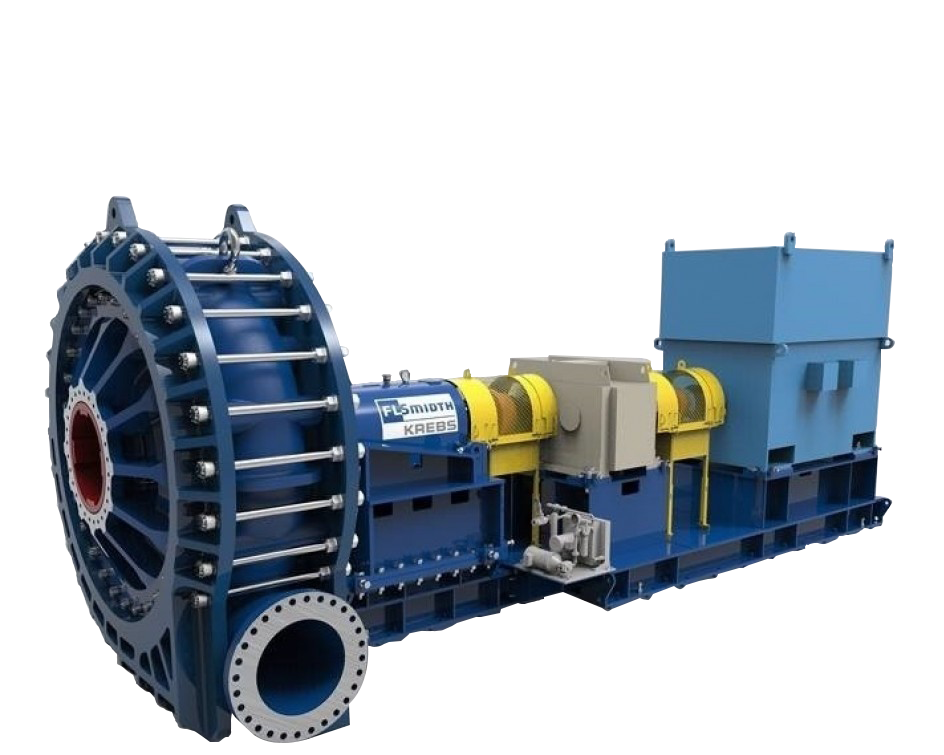

MillMax Pump


Increased wear life
Even wear life of all wet end parts
Less down time
Lower power consumption
Increased mill throughput
More consistent cyclone separation
Improved gland seal performance
Low-cost

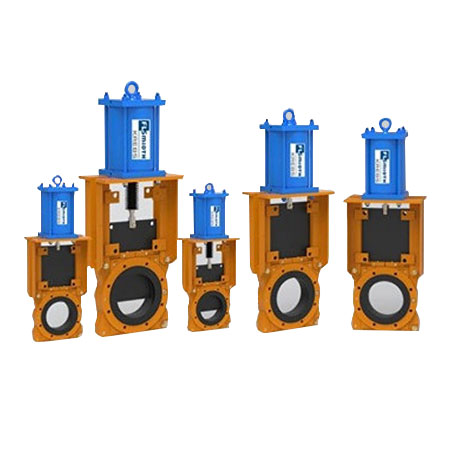

Wafer Knife Valve


Applications: Mining and mineral processing, Mineral sands, Cement, Sand and gravel, Coal, Phosphate, Ash, Alumina, Power, Pulp and paper, Chemical, General industry

Manual or automated actuators available
High strength stainless steel gate clevis
Wiper blade assembly to keep gate clean
Long-wearing, field replaceable sleeves
Open body prevents gate damage during actuation
Zinc-plated hardware for corrosion resistance
Manual lockout option available

Packing - Auger Filler


Applications: Candy & snacks, Chemical & garden, Coffee & tea, Sugar & Flour, Pet food, Seafood, Shaped pouches, Liquids

Operator keypad for data entry
Checkweigher feedback (standard option)
Auger count monitoring
LCD Operator information display
Drive & product cut-off monitoring
Digital display of fill results
Fill in-progress monitor
Fill complete monitor

Craft Sack Filling


Fully-Automatic or Semi-Automatic
Net weigh line for 10-50 kg bags
Paper bags/woven, PP/poly bags
Output up to 600 bags/h
Granulated/powdered products

Big-Bag Filling


Suitable to fill any kind of powdery or granular product into bags up to 1500 Kg
Could be located after one of the following dosing system: screw, belt conveyor or gravity feeder
4 electronic load cells, connected to the electronic weight controller graphic display
Can reach a maximum of 22-25 bags/hour (depending by the characteristics of the product)
Net weight version is advised for higher capacity, up to 60-70 bags/hour (only for good flowing product)

Bag Filling


Net weigh line for 10-50 kg bags
Paper bags/woven, PP/poly bags
Output up to 600 bags/h
Granulated/powdered products

Bicarmill - JCF


System is complete with all mechanical and electronic components, fully tested and ready for use.

Low energy use
Low noise emissions
Minimal maintenance
Excellent quality and reliability

Airless


The four dispenser airless anti-drip cabin has dimensions of 1800×1400mm
For formats 30/60/90cm
Side discharge and a lowered central drain

The six dispenser airless anti-drip cabin has dimensions of 2500×1400mm
For formats 30/60/90cm
A lowered central double exhaust

Airstorm Airbrush


Dispenser movement (from 1 to 12) independently
Stainless steel structure with 150x150x3 tubulars for total absence of vibrations
Weight management on the tile with GCP
Creation and management of production recipes in real time
Compatible with industry 4.0
Possibility to work with any spraying system (HVLP, Airless, Airmix)

Airbrush


Glazing cabin fitted with spray guns
Stainless steel
Glaze is recycled by the suction system

Available Formats: 30/45/60/90/120

Disc Cabin (Single)


Designed to meet the needs of versatility and quality required by the standards of modern production for glazing.

Excellent for large formats
Apply the glaze free of imperfections on the entire surface

Available versions format for tiles: 30/45/60/90/120/160 cm

Disc Cabin (Double)


Cabin motor drive unit controlled by inverter
Easy disc speed adjustment, operates quietly and without shaking.
Special interior design that removes glaze lumps and provides a perfect glaze application
Long operating time without washing
Stainless steel
Water jacket cooled version

Available versions: for 30/45/60/90/120 formats

Campana


Bell-shaped enamel applicator with air bubble-proof tank with “overflows” warning system.
It is particularly recommended to apply a uniform layer of engobe, enamel and high-density glazes.

Available Models: 450-600-900-1000-1200

TB3 Pump


Stainless steel manifold for the prevention of deposits and encrustations
1,1 kW Brushless motor to provide flow and pressure regardless of the number of outputs used
Stainless steel overpressure valve to protect the pump body from water hammers
Integrated pump body oil level check
Pressure management software with pump feedback
Automatic maintenance management
Automatic pump washing program
Dynamic nozzle control system

Glazing Pump


The direct horizontal centrifugal pumps are specifically designed for the transfer of strongly abrasive liquids such as:

Ceramic slips,
Glazes,
Dirty water with suspended solids, etc.

Vertical Pumps


Various types of vertical pumps for glaze preparation and mixing

Glazing Tank (Mixer)


Suitable for mixing and pumping medium and low density liquids and viscosity where the product is moved through the recirculation of the pump.

Available versions: D500 D600 D800 D900 D1000 D1200

Glazing Tank (Mixer) - K3


Suitable for stirring and pumping liquids with high density and viscosity where the product is moved by slow rotation of the blades.
The glazing lines are particularly suitable for feeding campanas, dies, pressure dies.

Available versions: K3/B diameter 600/800/900/1000/1200

Vertical Mixer


Mixers for glazes for tanks from 15 to 150000 liters
Available with various types of propeller or shovel
Motor power from 0,18 to 30 kW

Mobile Glazing Screen


The wheeled vibrating sieve is a machine designed to sift liquids with high density in order to eliminate impurities present inside of them.

Glaze Station


Automatic glaze preparation station with density control and maintenance in multiple tanks

Capacity 210 liters
1,1 kW mixing pump
Up to 4 containers for 20 liter additives each
Mass flow sensor and self-cleaning density
Up to 5 load cells
Laser photocells

Laboratory Booth (Stainless)


Stainless steel
Enamel felling system
Complete with pump and suction fan

Vela


Ideal solution for the application of veil of enamel, engobe, grit, during the production of porcelain, single-fired or double-fired tiles.

Available Versions: From min format 330 up to max 1400 mm

Motorized Tile Turner


Motorized tile turner with 8 straps
Fully automatic

Designed for use and insertion on glazing lines, for rotation in 90 ° plane of all ceramic tiles in transit on the conveyor line.

Managed by a control system which allows a constant maintenance of the speed work set up, using a touch screen keypad.

Lifting Platform


Designed and built for the use and insertion of tiles on the glazing lines, normally at the exit of the dryer, for the movement of the ceramic material.

Available Format: from 30×30 up to 1200×2000

Motorized Engobing Device (Single)


The motorized engobe is an automatic machine designed and built for insertion on the glazing line, to distribute a uniform engobe layer on the lower base of the ceramic tiles in transit on the conveyor line.

Available versions: For format from 150×150 up to 1600×3200 mm

Motorized Engobing Device (Double)


The motorized engobe is an automatic machine designed and built for insertion on the glazing line, to distribute a uniform engobe layer on the lower base of the ceramic tiles in transit on the conveyor line.

Available versions: For format from 150×150 up to 1600×3200 mm

Easy Freeze Plus


Direct exchange cooling system that allows a reduction of humidity and temperature of the tiles to 15 °C before digital decoration with inkjet machines.

The part in contact with the cold air is coated with special insulating materials on the inside
Transport of the tiles inside the machine on belts
Internal centrifugal air supply fan, made of galvanized steel
External axial condenser cooling fan
Two batteries, one evaporating and one condensing
Air filter made of filtering material in corrugated synthetic fiber without electrostatic charge, class G2

Tecno Dry


A roller machine for the application of grits and frits coverings with high quantity
A tank/elevator for product loading, a tank/roller for the distribution on a tile and a conveyor belt fot excess product recovery

The application area is completely closed in order to reduce the product leak
Provided with infrared lamps and intake plugs in order to eliminate humidity from powders
Controlled by an electronic panel with a touch-screen that allows to adjust all working parameters and save them into formulas

UV Dryer


The UV lamp drying lamp is an automatic machine. It has been designed and built for use and insertion on the glazing lines after the enamel application machines, to dry the application given on the upper surface of the tile through the use of UV lamps.

Tile size: from 600 to 1800

Jacob Flexible Connections

Tri-Clamp Flexible Connections

Weighing Flexible Connections
